Name: Rapid Concrete Forming Clamps With Spring for Tensioning Wire Tie Bar
Brand: HORIZON
Price: 1 USD

Brand Name : HORIZON

Model Number : Spring rapid clamp

Certification : SGS

Place of Origin : CHINA

MOQ : 5000 pcs

Price : pls ask HORIZON

Payment Terms : L/C, T/T

Supply Ability : 50000 pcs per week

Delivery Time : 15-25 days

Packaging Details : bags on pallets

Material : Steel pressed

OEM : Available

finishing : galvanized, painting

Size : 75x110mm

Application : for tensioning wire tie bar

Samples : available

Contact Now

Rapid Concrete Forming Clamps With Spring for Tensioning Wire Tie Bar

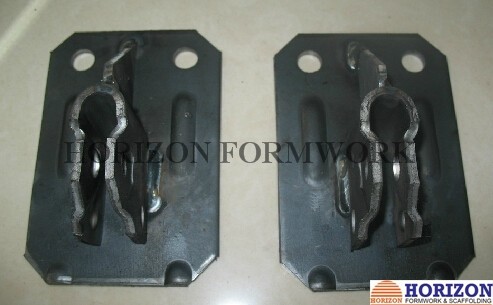

Spring rapid clamp is a fast and effective method for securing wire tie bars in light formwork applications.

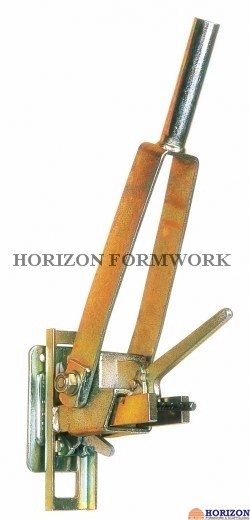

Tensioner tools are used to pull the wire tie bar through the clamp.

Wire tie bar diameter from 5-10mm can pass through the spring clamp.

Main application: bracing formwork when being used for foundations or applied to beam formwork.

Load capacity:

6mm tension bar appr. 4KN

8mm tension bar appr. 7KN

10mm tension bar appr. 11KN

Rapid Concrete Forming Clamps With Spring for Tensioning Wire Tie Bar
